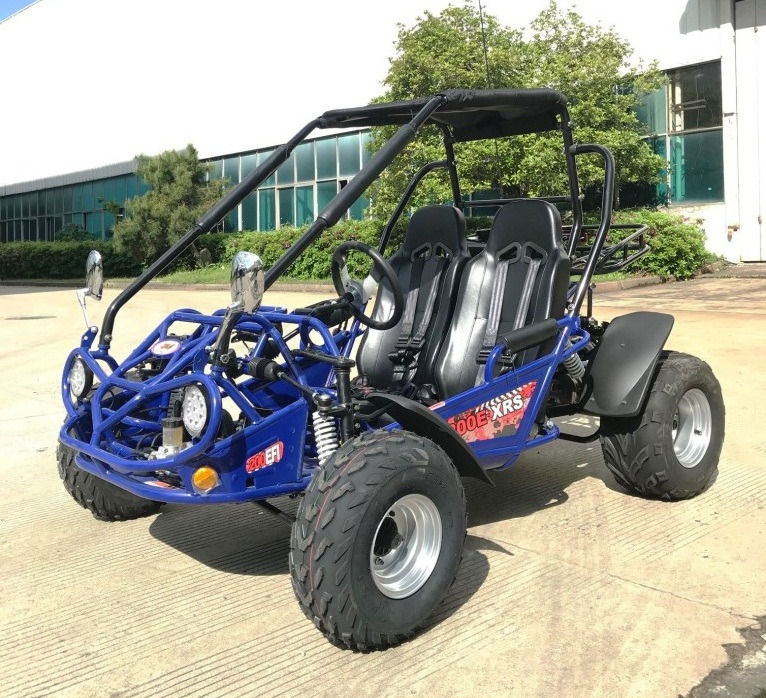

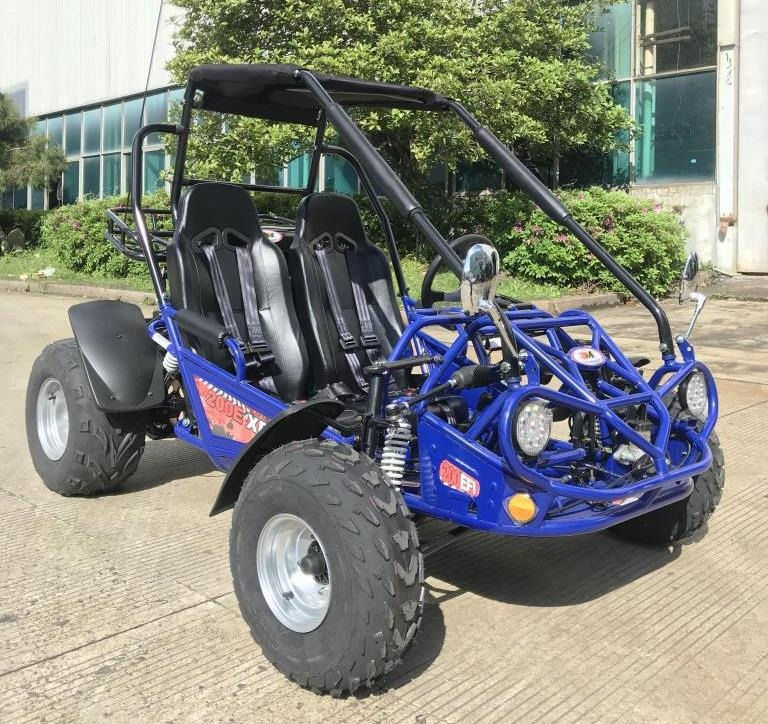

TRAIL MASTER 200 XRS-E (EFI)

TRAIL MASTER 200 XRS-E (EFI)

$3,799.00 Regular Price
$3,499.00Sale Price
The TrailMaster 200E XRS is an upgrade from one of our the best-selling adult model 150 XRS, now with a bigger 169cc GY6 engine equipped with EFI. With fuel injection, users don’t need to worry about starting in cold weather or at high altitudes; Furthermore, users don’t need to fix or replace carburetors after periods of inactivity with the unit.
Color

  • FEATURES

    • Fuel injection system operates under any weather and at any altitude
    • Fully automatic with reverse, high performance 168.9cc GY6 engine with internal F-N-R
    • Top Speed over 40 M/H
    • Five-point safety seatbelt
    • Electric start with kill switch
    • Fully automatic with reverse, high performance GY6 engine with internal reverse set up
    • Adjustable steering wheel
    • Large tires with 20X7-8 in the front and 21X10-10 in the back, steel wheel
    • LED head light
    • Bikini sunshade top
    • Adjustable driver seat: pedal to seat back adjustable from 36” to 43”
    • Adjustable heavy duty front and rear shock absorber
    • Rack and pinion steering wheel
    • Front and rear hydraulic disc brake
    • 4-point rear swing arm
    • Parking brake
    • 4-wheel fenders
    • Trailer hitch
    • Large rear utility rack
    • Large gas tank

  • SPECIFICATIONS

    Engine Information
    • EPA certificated
    • Engine type: 4-stroke, single cylinder, air cooled
    • Displacement: 168.9cc
    • Max HP: 11.1hp/8000rpm
    • Max torque: 8.1 lb ft/6000rpm
    • Bore x stroke: 2.4x2.28 inches
    • Max speed: 43 mph
    • Climbing ability: 18 degrees
    • Ignition: ECU
    • Starting system: Electric
    • Battery: 12V 10Ah
    • Engine oil: SAE 15W-40

    General Information
    • Clutch: Automatic CTV with reverse
    • Driveline / Driving wheel: Chain / Dual wheel drive
    • Suspension F / R: Double A-arm / swing-arm
    • Brakes, F / R: Both hydraulic brakes, Disc
    • Tires, F / R: 20x7-8 / 21x10-10
    • Wheel: Steel
    • Fuel capacity: 2.25 gal
    • Weight, G.W. / N.W.: 573 / 485 lbs - 259 / 219 kg
    • Max load: 500 lbs

    Dimension Information
    • Wheelbase: 59 inches
    • Length×Width×Height(‌Inches): 85x53.1x57.5 / (mm): 2159x1348x1460
    • Crate size: 88X48X25 inches
    • Shipping weight: 650lbs
    • Height to seat: 13.8 inches
    • Min ground clearance: 6.7 inches
    • Pedal to seat back distance: 36” to 43”
