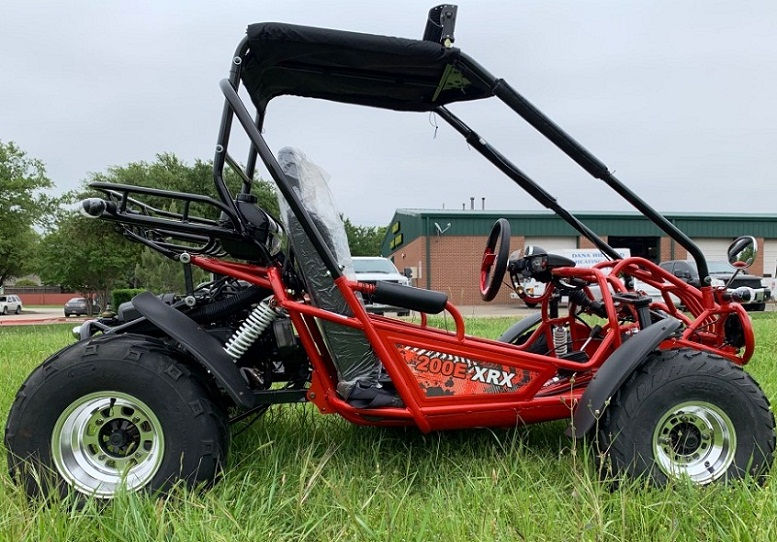

TRAIL MASTER 200 XRX-E

TRAIL MASTER 200 XRX-E

$4,099.00 Regular Price
$3,799.00Sale Price
The TrailMaster 200E XRX, now with a bigger 169cc GY6 engine equipped with EFI. With fuel injection, users don’t need to worry about starting in cold weather or at high altitudes; Furthermore, users don’t need to fix or replace carburetors after periods of inactivity with the unit.
Color

  • FEATURES

    • Fuel injection system operates under any weather and at any altitude
    • Fully automatic with reverse, high performance 168.9cc GY6 engine with internal F-N-R
    • Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires
    • Top LED light bar
    • Digital speedometer/odometer
    • Aluminum side mirrors
    • Turn signals
    • Sporting steering wheel
    • Five-point safety harness
    • Electric start with kill switch
    • Adjustable steering wheel
    • Individual sports seats
    • LED headlight
    • Bikini sunshade top
    • Adjustable driver seat: pedal to seat back adjustable from 36” to 43”
    • Rack and pinion steering wheel
    • Front and rear hydraulic disc brake
    • 4-point rear swing arm
    • Parking brake
    • Trailer hitch
    • Large rear utility rack
    • Large gas tank

  • SPECIFICATIONS

    Engine Information
    • EPA certificated
    • Engine type: 4-stroke, single cylinder, air cooled
    • Displacement: 168.9cc
    • Max HP: 11.1hp/8000rpm
    • Max torque: 8.1 lb ft/6000rpm
    • Bore x stroke: 2.4x2.28 inches
    • Max speed: 43 mph
    • Climbing ability: 18 degrees
    • Ignition: ECU
    • Starting system: Electric
    • Battery: 12V 10Ah
    • Engine oil: SAE 15W-40

    General Information
    • Clutch: Automatic CTV with reverse
    • Driveline / Driving wheel: Chain / Dual wheel drive
    • Suspen F / R: Double A-arm / swing-arm
    • Brakes, F / R: Both hydraulic brakes, Disc
    • Tires, F / R: 22x7-10 / 22x10-10
    • Wheel: Aluminum
    • Fuel capacity: 2.25 gal
    • Shipping / Net Weight: 661 / 533 lbs - 299 / 241 kg
    • Max load: 500 lbs

    Dimension Information
    • Wheelbase: 61 inches
    • Length×Width×Height(‌Inches): 85x53.1x57.5 / (mm): 2159x1348x1460
    • Crate size: 88X48X25 inches
    • Height to seat: 13.8 inches
    • Min ground clearance: 6.7 inches
    • Pedal to seat back distance: 36” to 43”
