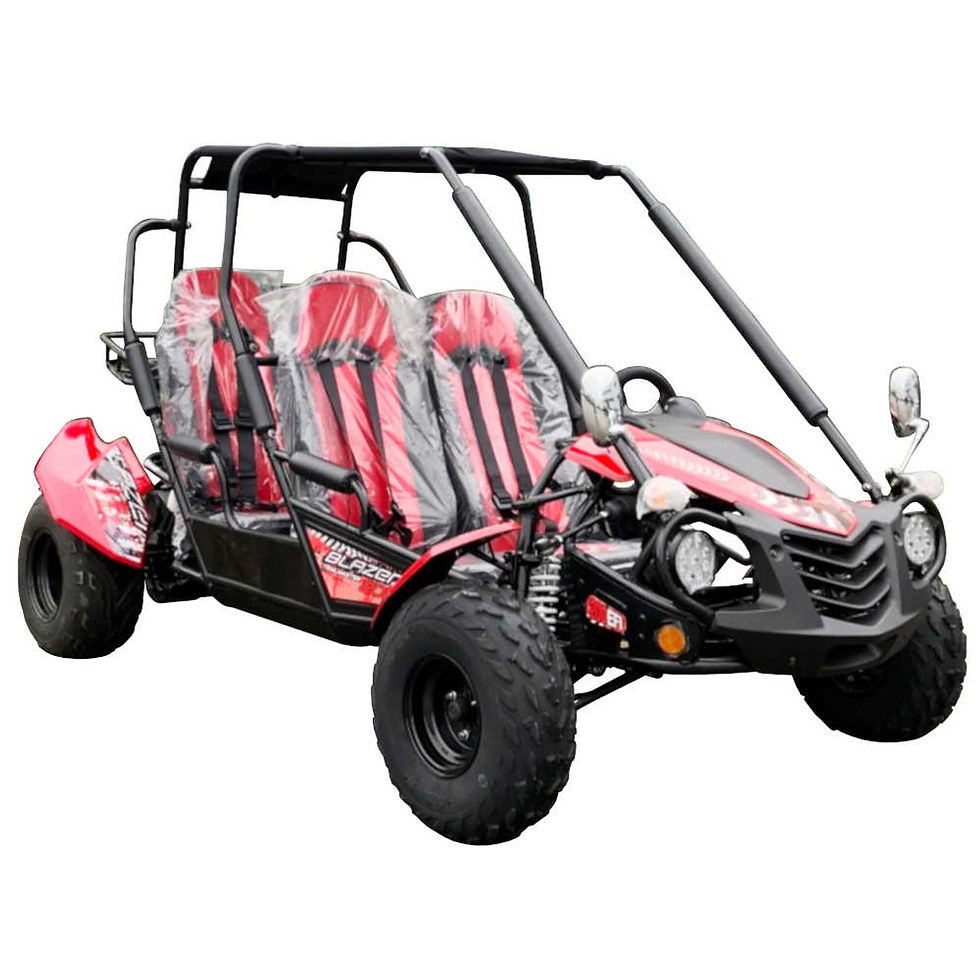

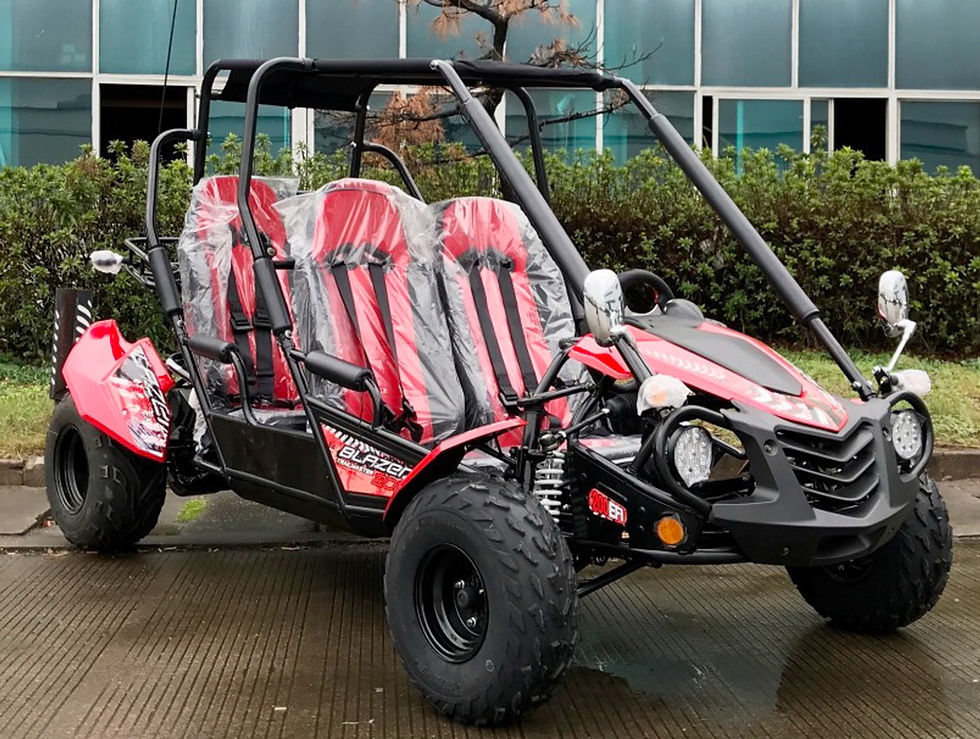

TRAIL MASTER BLAZER 4 200EX

TRAIL MASTER BLAZER 4 200EX

$4,499.00 Regular Price
$4,299.00Sale Price
The TrailMaster Blazer4 200EX is an upgrade from the Blazer4 150X, now with a bigger 169cc Engine.  GY6 engine and equipped with EFI. With fuel injection, users don't need to worry about starting in cold weather or at high altitudes; Furthermore, users don't need to fix or replace carburetors after periods of inactivity with the unit.
This is a full size 4-seat go kart that accommodates up to 4 adults! It is has a heavy duty frame, net weight 578 Is with a max load capacity of 800 lbs! Both front driver and passenger seats are adjustable with driver side pedal to seat back adjustment from 36" to 42", for driver/passenger up to 6'2 in height; Front seat to rear seat distance is 26 inches, for passengers up to 6'2 in height! With bigger front & rear tires of 20 x 7-8 / 21 x 10-10 and a special gear ratio, gives plenty of power to take off and pull 4 people. Top speed up to 38 MPH.
Color

  • FEATURES

    • Fuel injection system operates under
    • Digital speedometer/odometer
    • Aluminum side mirrors
    • Fully automatic with reverse
    • Turn signals
    • 5-Point safety harness seatbelt
    • Individual sporting seats
    • Big tires: F / R: 20 x 7-8 / 21 × 10-10
    • Bikini sunshade top
    • Top speed can reach up to 38 M/H.
    • Adjustable heavy duty front and rear shocks
    • Stylish design
    • Electric start with kill switch
    • Rack and pinion steering wheel
    • Heavy duty frame, net weight 728 lbs, max load 800 lbs
    • Front and rear hydraulic disc brake
    • 4-wheel fenders
    • Trailer hitch
    • Large gas tank
    • LED headlight
    • Horn
    • Adjustable front driver and Passenger Seat
    • Padding over roll cage

  • SPECIFICATIONS

    • EPA certificated
    • Engine type: 4-stroke, single cylinder, air cooled
    • Displacement: 168.9cc
    • Max HP: 11.1hp/8000rpm
    • Max torque: 8.1 lb ft/6000pm
    • Climbing ability: 18 degrees
    • Min. turning radius: 229 inches
    • Ignition: ECU
    • Starting system: Electric
    • Battery: 12V 10Ah
    • Engine oil: SAE 15W/40
    • Bore x stroke: 2.4x2.28 inches
    • Max speed: 38 mph
    • Clutch: Automatic CVT with reverse
    • Driveline / Driving wheel: Chain /
    • Dua whee drive
    • Suspension, F / R: Dual A-arm / swing-arm
    • Tires, F / R: 20 x 7-8 / 21 x 10-10
    • Fuel capacity: 2.25 gal
    • Weight, G.W. / N.W.: 850 lbs/ 728
    • Ibs
    • Max load: 800 lbs
    • Brakes, F / R: hydraulic Disc
    • Wheelbase: 88 inches
    • OA L y W y H: 116.1x54 5×55.5 inches
    • Height to seat, F/R: 17 inches/ 20
    • Distance from F to R seat: 26 inches
    • Min ground clearance: 15.8 inches
    • Pedal to seat back distance: 36-42 inches
