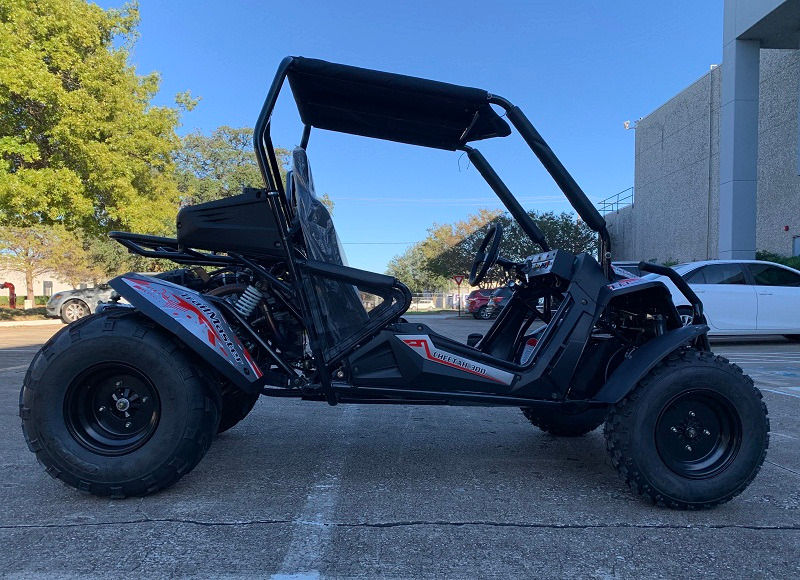

Trail Master Cheetah 300E (EFI)

*18HP powerful water-Cooled 300cc CVT fully automatic with *reverse engine
*EFI operates under any weather and at any altitude
*Gear ratio set up offers maximum low-end torque
*Sporty stylish design with exciting graphics
*Large tires with 22X7-10 in the front and 22X10-10 in the back
*Front steel bumper
*Articulating rear suspension equipped with anti-slop pull belts, much harder to roll over comparing to other rear solid axle machines
*LED headlight and turn signal
*Electric start with kill switch
*Adjustable steering wheel
*Four-point safety seatbelt
*Individual sports seats
*Bikini sunshade top
*Adjustable driver seat: pedal to seat back adjustable from 36” to 42”
*Rack and pinion steering wheel
*Front and rear hydraulic disc brake
*Parking brake
*4-wheel stylish fenders
*Large gas tank

Engine Information

Engine Information
EPA certificated
Engine type: 4-stroke, single cylinder, water- cooled
Displacement: 275.6cc
Fuel system: EFI
Max HP: 13KW@7500 RPM
Max torque: 22N.m@5000 RPM
Bore x stroke: 2.85x2.63 inches
Max speed: 32 mph
EFI Ignition module: RM1A1
Starting system: Electric
Battery: 12V 10Ah
Engine oil: SAE 10W-40

General Information
Clutch: Automatic CTV with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: DUAL A-ARM / THRU-SHAFT WITH DUAL SHOCKS AND DUAL A-ARM
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 22x7-10 / 22x10-10
Fuel capacity: 2.64 gal
Weight, G.W. / N.W.: 750 / 650 lbs - 340 / 294 kg
Max load: 500 lbs

Dimension Information
Wheelbase: 71 inches
Length×Width×Height(‌Inches): 92.1x55x58.3 / (mm): 2339x1397x1480
Crate size: 88x48x25 inches
Height to seat: 18.5 inches
Min ground clearance: 5.9 inches
Pedal to seat back distance: 36" to 42"
