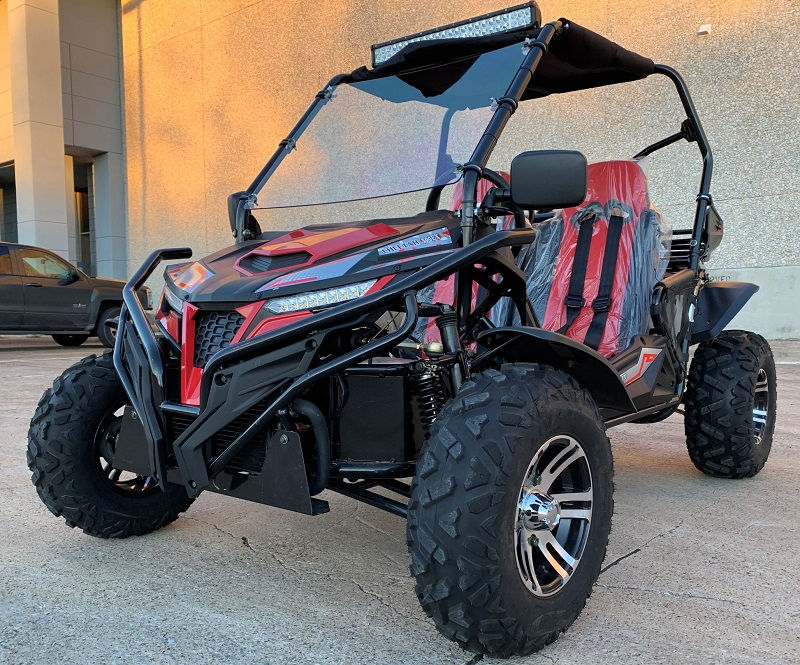

Trail Master Cheetah 300EX (EFI)

Trail Master Cheetah 300EX (EFI)

$6,499.00 Regular Price
$5,999.00Sale Price
The Trail Master Cheetah300EX
• The new 300EX comes with all the extras including a full windshield, light bar, chrome rims, and graphics package.
• The water-cooled power plant has been holding strong for over ten years and has proven reliable.  Now with the addition of fuel injection, the EFI also performs well in high altitude and high humidity conditions.
• The center pivot suspension gives you an additional 6 inches of clearance to allow better handling in rough conditions.

Color

  • FEATURES

    *18HP powerful water-Cooled 300cc CVT fully automatic with reverse engine

    *EFI operates under any ​weather and at any altitude

    *Gear ratio set up offers maximum low-end torque

    *Sporty stylish design with exciting graphics

    *Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires

    *Top LED light bar

    *High quality windshield

    *Side rearview mirrors

    *Front steel bumper

    *Articulating rear suspension equipped with anti-slop pull belts, much harder to roll over comparing to other rear solid axle machines

    *LED headlight and turn signal

    *Electric start with kill switch

    *Adjustable steering wheel

    *Four-point safety seatbelt

    *Individual sports seats

    *Bikini sunshade top

    *Adjustable driver seat: pedal to seat back adjustable from 36” to 42”

    *Rack and pinion steering wheel

    *Front and rear hydraulic disc brake

    *Parking brake

    *4-wheel stylish fenders

    *Large gas tank

  • SPECIFICATIONS

    Engine Information

    • EPA certificated
    • Engine type: 4-stroke, single cylinder, water- cooled
    • Displacement: 275.6cc
    • Fuel system: EFI
    • Max HP: 17hp @7500 RPM
    • Max torque: 22N.m@5000 RPM
    • Bore x stroke: 2.85x2.63 inches
    • Max speed: 38 mph
    • EFI Ignition module: RM1A1
    • Starting system: Electric
    • Battery: 12V 10Ah
    • Engine oil: SAE 10W-40

    General Information

    • Clutch: Automatic CTV with reverse
    • Driveline / Driving wheel: Chain / Dual wheel drive
    • Suspension F / R: DUAL A-ARM / Independent suspension
    • Brakes, F / R: Both hydraulic brakes, Disc
    • Tires, F / R: 22x7-10 / 22x10-10
    • Fuel capacity: 2.64 gal
    • Weight, G.W. / N.W.: 750 / 650 lbs - 340 / 294 kg
    • Max load: 500 lbs

    Dimension Information

    • Wheelbase: 71 inches
    • Length×Width×Height(‌Inches): 92.1x55x58.3 / (mm): 2339x1397x1480
    • Crate size: 88x48x25 inches
    • Height to seat: 18.5 inches
    • Min ground clearance: 5.9 inches
    • Pedal to seat back distance: 36” to 42”
