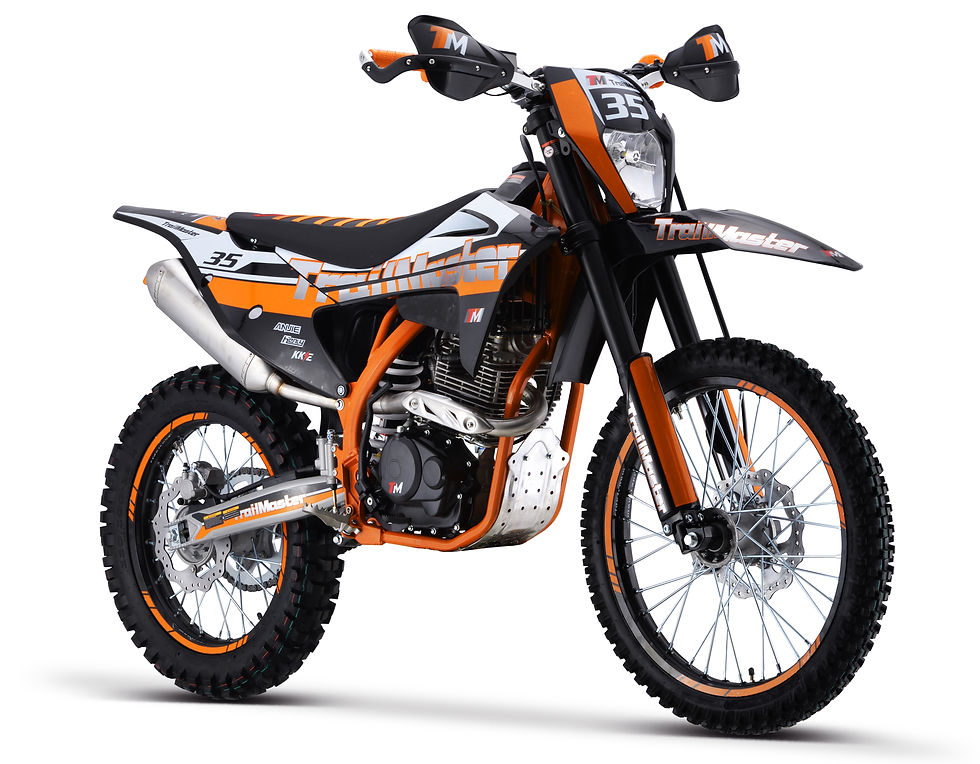

Trailmaster Dirt Bike TM35 (Manual Clutch)

Trailmaster Dirt Bike TM35 (Manual Clutch)

$2,799.00 Regular Price
$2,499.00Sale Price
Trailmaster Dirt Bike TM35 off-road, Electric And Kick Start, w/headlight. 5 Gear Manual Clutch
Color

  • FEATURES

    • Powerful 4 stroke 249.9cc air cooled 19HP engine
    • Electric and kick start,  5 gear manual clutch
    • New Unique Designed Central Tube High Strength Steel Frame
    • 53“ wheel base and 36.2” seat high
    • Dual Piston Caliper, 240mm Disc front brake
    • 830mm Inverted Hydraulic Forks, 150mm Travel
    • 450mm Spring Pre-load None-Adjustable Shock
    • Front tire 21”/Rear Tire 18”
    • LED Headlight
    • Foldable Clutch & Brake Lever
    • Alloy Bracket Handguard
    • Matching frame color Water-Transfer Printing Rim
    • Ribbed Seat

  • SPECIFICATIONS

    SPECIFICATONS
    POWER SYSTEM
    Engine Type ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling
    Displacement 249.9 ml
    Max Power 14/8500 kw/r/min
    Max Torque 18/6500 N.m/r/min
    Compression Ratio 9.25:1
    Shift Type Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears
    Bore and Stroke 72 x 61.4 mm
    Min.Fuel Consumption ≤354(g/Kw.h)
    Start Type Electric & Kick Start
    Carburetor PE28 (EPA)
    Ignition  Digital CDI
    Engine Oil #： SJ-10W/40
    Transmission #520 & 112L Chain, FT: 13T/RR: 47T Sprocket
    PERFORMANCE
    Front Suspension Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel
    Rear Shock Φ12*450mm Spring Pre-load None-Adjustable Shock
    Front Wheel Aluminum Rim-WT Printing , DCA Hub, FT: 1.6 x 21
    Rear Wheel Aluminum Rim-WT Printing , DCA Hub, RR: 2.15 x 18
    Front Tires 80/100-21
    Rear Tires 110/100-18
    Front Brake Dual Piston Caliper, 240mm Disc
    Rear Brake Single Piston Caliper, 240mm Disc
    Seat Ribbed TrailMaster Seat
    HeadLight LED
    Fairings GS style New Fairings
    Handguard Aluminum Bracket Version
    DETAILS
    Frame Lightweight ,Steel Hexagon Tube Frame
    Swing-Arm Tube High Strength Steel Swingarm; L=560mm
    Handle Bar Tapered Aluminum  #6061
    Overall Size Length×Width×Height: (Inches)80.3x32.1x48.4 / (mm)2040x815x1230
    Packing Size 67.8"x17.7"x34.3"(1720x450x870mm)
    Wheel Base 1345 mm/53 inch
    Seat Height 920 mm/ 36.2 inch
    Ground Clearance 310 mm/12.2 inch
    Fuel Capacity 6.5L/1.72G
    N.W 114KG/251 lbs
    G.W 132KG/291 lbs
