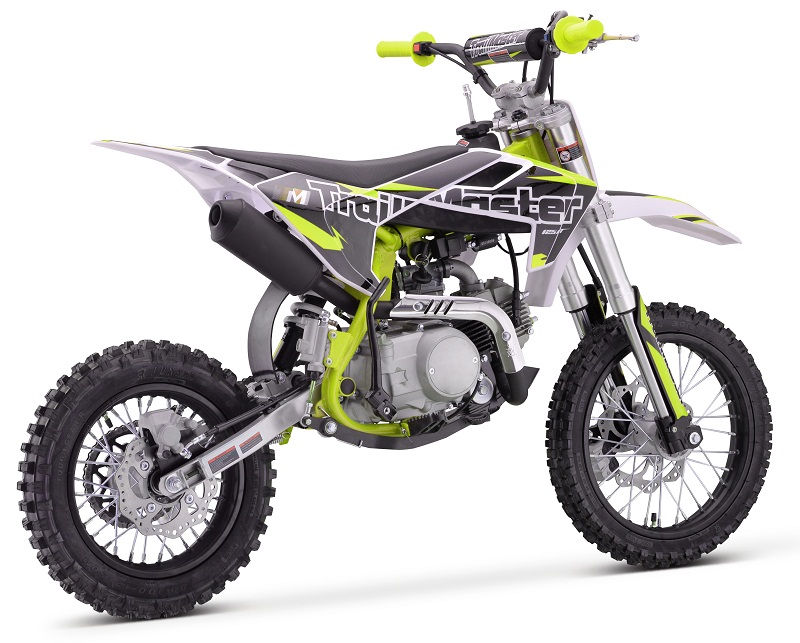

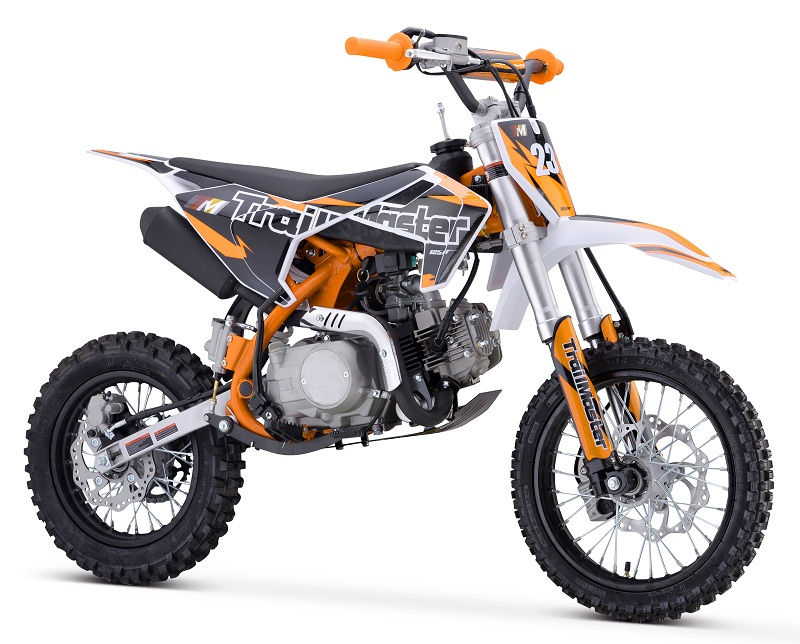

Trailmaster TM23 125cc Dirt Bike (semi auto)

Trailmaster TM23 125cc Dirt Bike (semi auto)

$1,499.00 Regular Price
$1,299.00Sale Price
Trailmaster TM23 125cc Dirt Bike, Electric And Kick Start,Semi Automatic (NO Clutch)
Color

  • FEATURES

    • Powerful 125cc engine
    • Electric and kick start , automatic clutch
    • 41.54 “ wheel base and 29.13” seat high
    • Front tire 14”/Rear Tie 12”
    • Hydraulic front and rear disc brakes
    • Aluminum handle bar

  • SPECIFICATIONS

    General Information

    • Engine Type ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
    • Displacement 124 ml
    • Max Power 8.3 hp
    • Max Torque 9.0(1±10%）/5000（1±5%） N.m/r/min
    • Compression Ratio 9.6:1
    • Shift Type N‐1‐2‐3‐4, Four‐Gears, Automatic Clutch
    • Start Type Electric & Kick Start
    • Ignition CDI
    • Min. Fuel Consumption: ≤367g/kw.h
    • Max Range: ≤10.5mile
    • Engine Oil #： SJ5W一30
    • Transmission: Chain Drive;#428，14/41T

    Size Data

    • Overall Size (Length×Width×Height): (Inches)60.24X28.74X39.76 / (mm)1530X729X1009
    • Wheel Base 41.54"
    • Seat Height 29.13"
    • Ground Clearance 10.63"
    • Fuel Capacity 3.5 L/0.92 Gal.
    • Wheels Steel 1.6 x 14" / 1.85 x 12" Rims, Cast Hubs
    • Tires FT: 60/100‐14 ‐ RR:80/100‐12

    Frame/Suspension/Brake/Wheel System

    • Frame: Cradle Steel Tube Frame
    • Front Fork Telescopic ￠33*650mm Forks, Non‐Adjustable
    • Rear Shock ￠10*270mm , Non‐Adjustable
    • Swing‐Arm Steel Tube 12 inch
    • Handle Bar Aluminium Crossbar ,L=28.35"; Dia=0.87"
    • Front Brake Hydraulic Single Piston Caliper, 220mm Disc
    • Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
    • Exhaust Steel Pipe with catalyst converter(EPA Standard) Packing Size 54.5"X14.8"X30"
    • N.W: 134.5 LBS / 61 KG
    • G.W: 161 LBS / 73 KG

    Product Dimensions
    • Length×Width×Height: (Inches)53*15*26 / (mm)1346*381*660
    • Weight : (Lbs)161 / (Kg)73
